SPECIFICATIONS

App Setting: Yes

Brand Name: HCSTVCON

Communication: Wired,Wired

Effective MegaPixel: 8MP

Hign-concerned Chemical: None

Lens Interchangeable: No

Max Controllable Speed: 50°/s

Memory Card Type: NONE

Model Number: HD590

Optical Zoom: > 6x

Origin: Mainland China

Panning Angle: 340°

Sensor Size: 1/1.7 inches

Sensor Size (inches): Full-Frame

Support Remote Control: Yes

Vertical Shooting: Yes

Video Resolution: 4K

Weight: 1.35kg

color: black/white

of Axes: 1-Axis

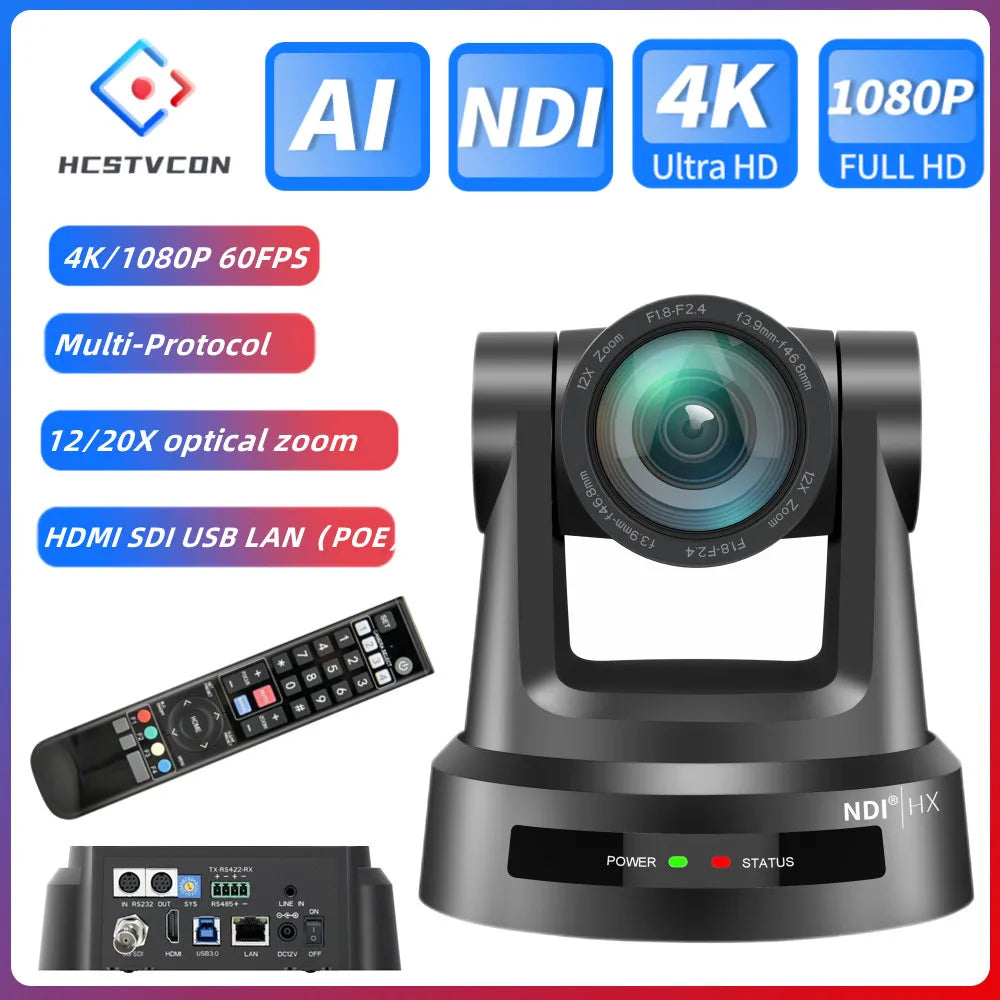

PTZ Cam 4K/1080P 60fps Video Conference Camera HDMI SDI LAN USB 10/12/20/30X for Church Business Meet Zoom Youtube Skype Live Streaming

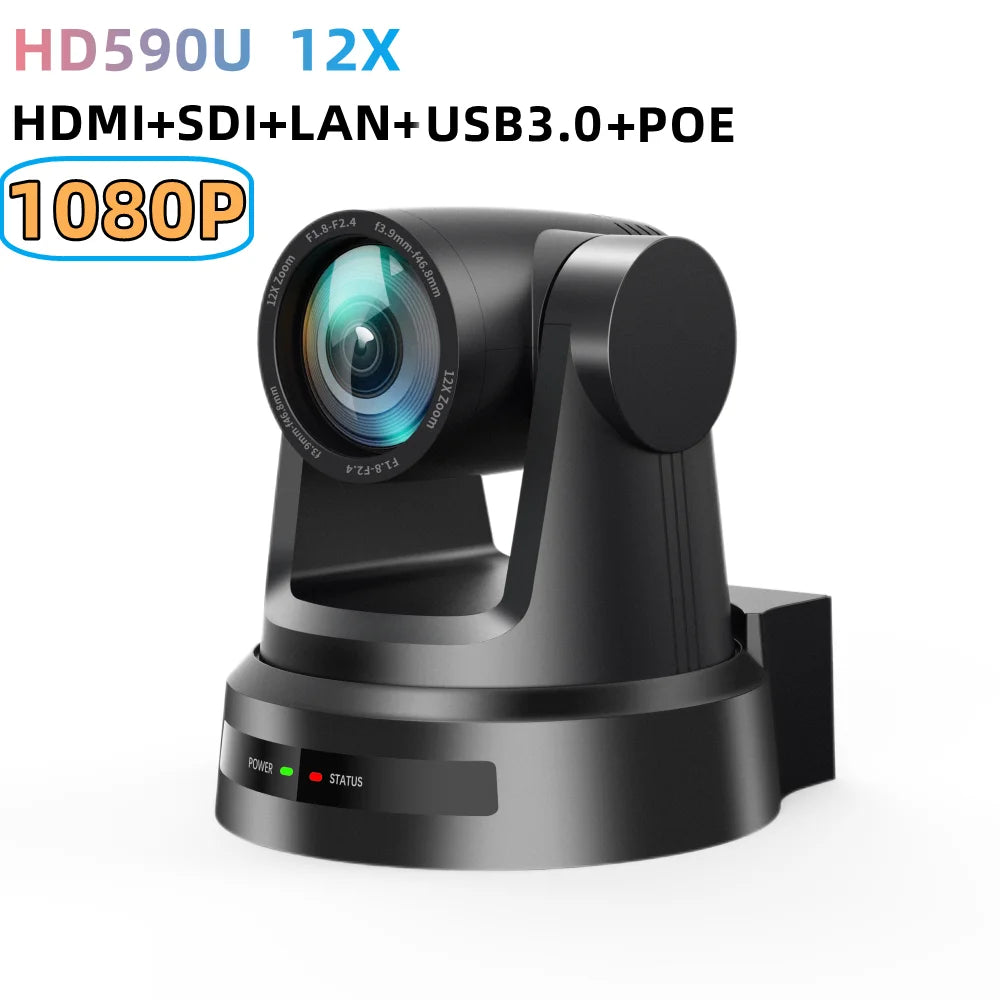

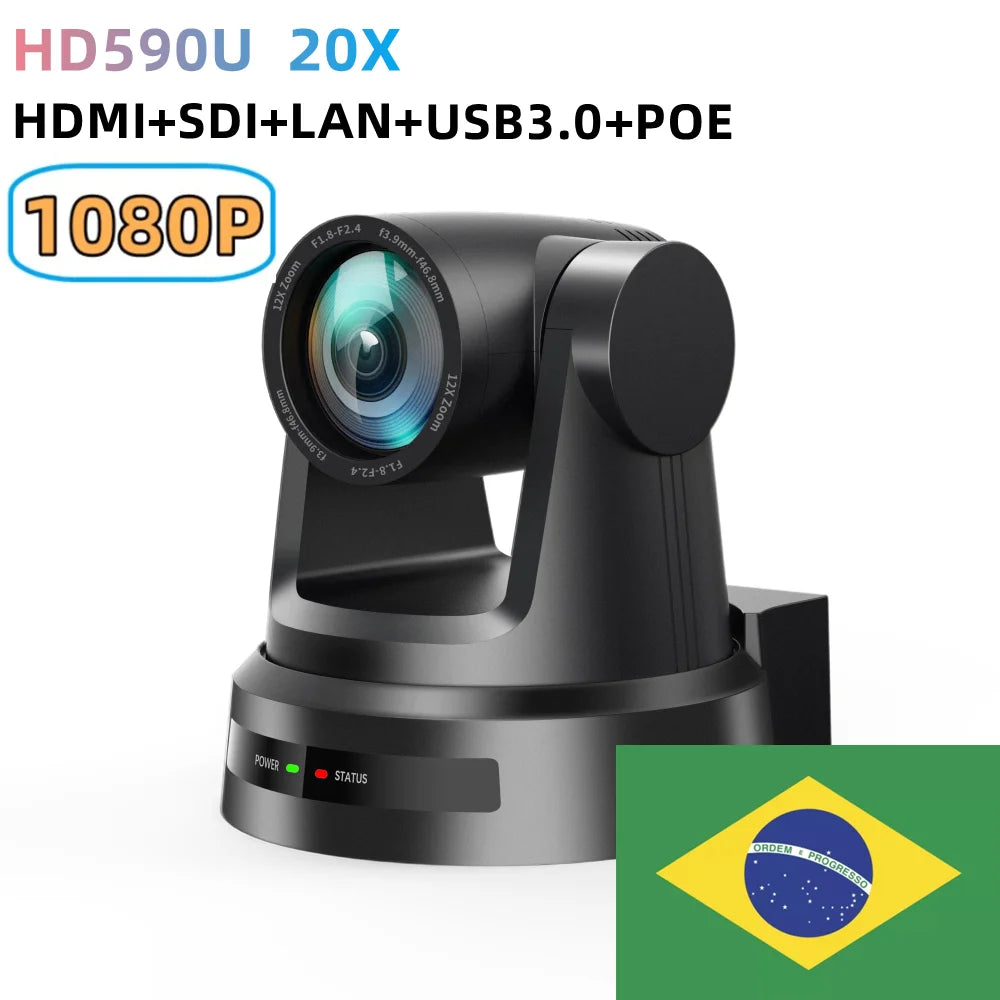

1080P   Features:

🍒Full HD image: Using a 1/2.7-inch 2.07 million pixel high-quality CMOS image sensor, the maximum resolution can reach 1920 × 1080, the output frame rate is up to 60 frames per second, presenting clear and realistic high-definition video, vividly showing the expressions of the characters and action.

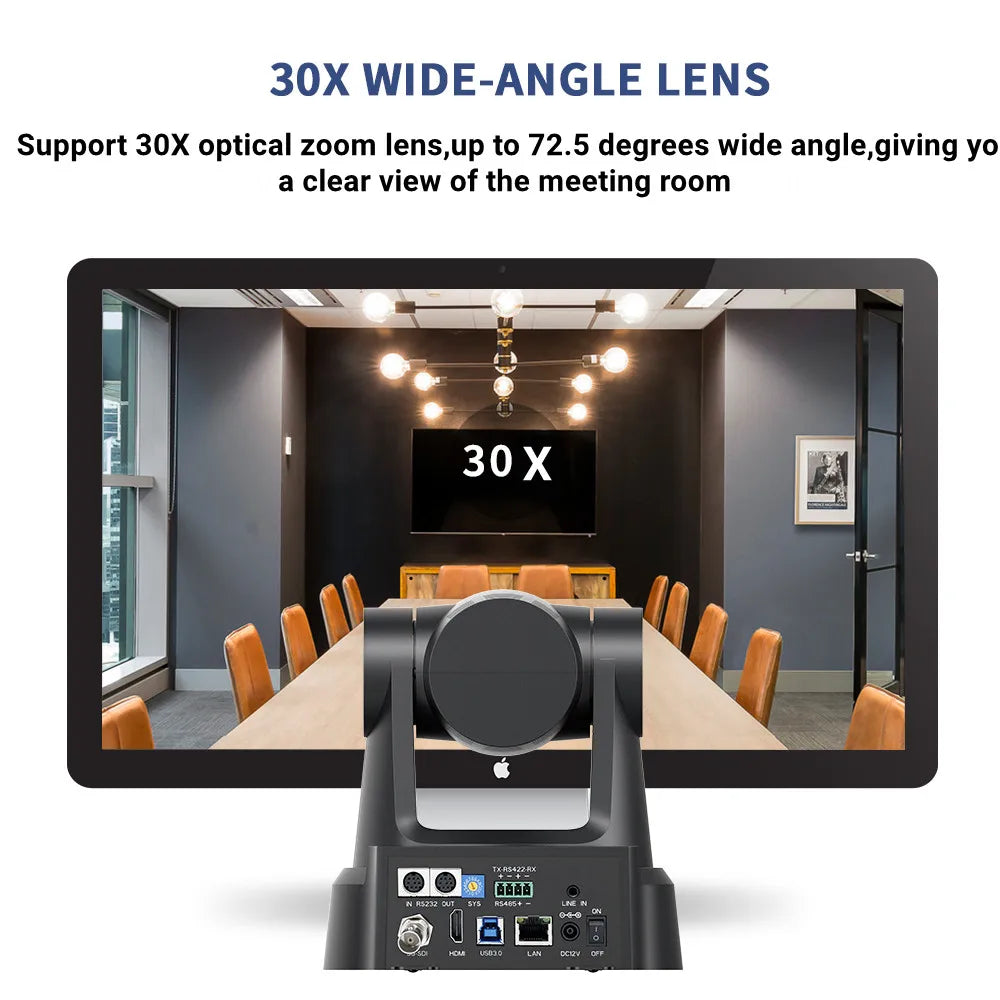

🍒Various optical zoom lenses: 12/20X optical zoom lens options, 16x digital zoom; 12x lens with 72.5° small distortion and wide viewing angle.

🍒Auto-focusing technology: The advanced auto-focusing algorithm enables the lens to complete auto-focusing quickly, accurately and stably.

🍒Low noise and high signal-to-noise ratio: Low-noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of camera video. Adopt advanced 2D and 3D noise reduction technology to further reduce noise while ensuring image clarity.

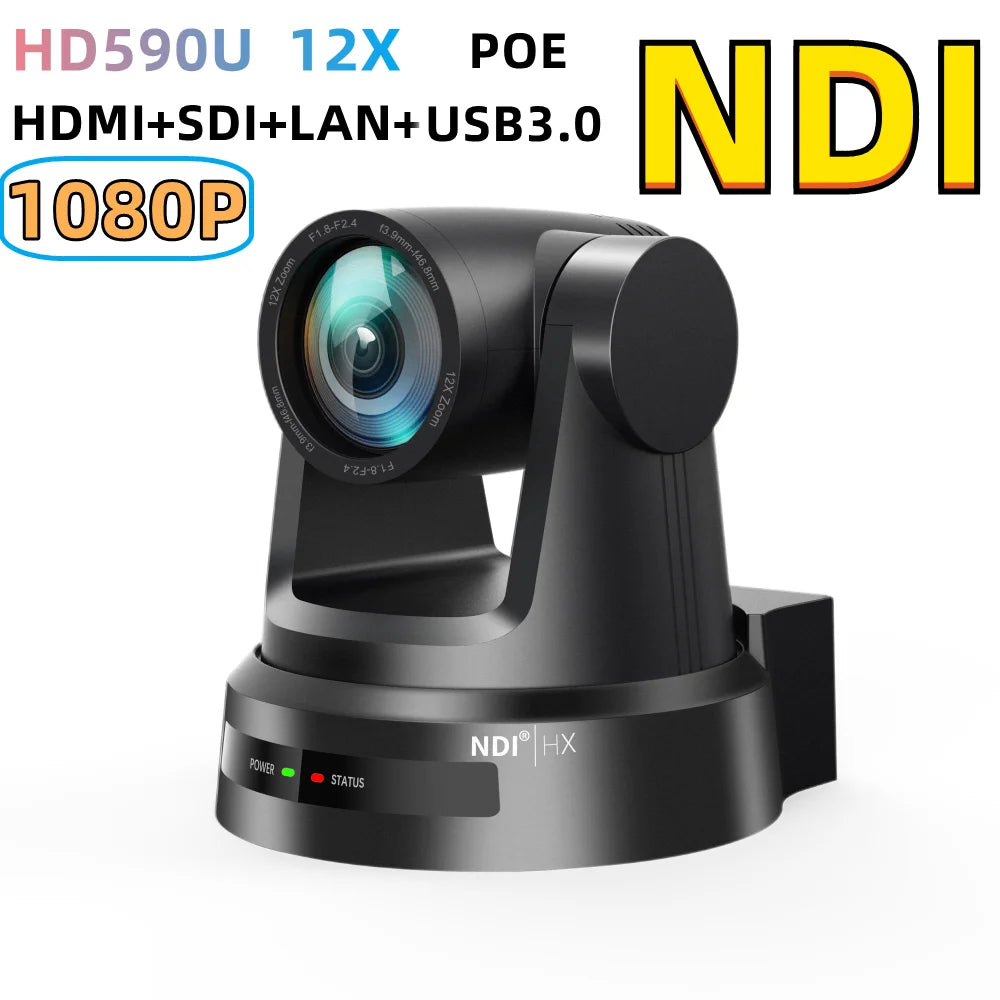

🍒Multiple video output interfaces: support HDMI, SDI, LAN interface, WiFi optional; HDMI, SDI, LAN interface support simultaneous audio and video output; SDI supports transmission 100 meters in 1080P60 format. / Support HDMI, SDI, LAN interface, WiFi optional; HDMI, SDI, LAN interface support simultaneous audio and video output; SDI supports transmission of 100 meters in 1080P60 format.

🍒Multiple audio and video compression standards: LAN interface supports H.265, H.264 video compression; A-IN interface supports 8000, 16000, 32000, 44100, 48000 sampling frequencies, and supports AAC, MP3, G.711A audio compression.

🍒Audio and video storage: USB2.0 interface supports U disk storage function to realize local recording storage.

🍒Built-in gravity sensor: The built-in gravity sensor supports the automatic turning function of the gimbal, which is convenient for engineering installation.

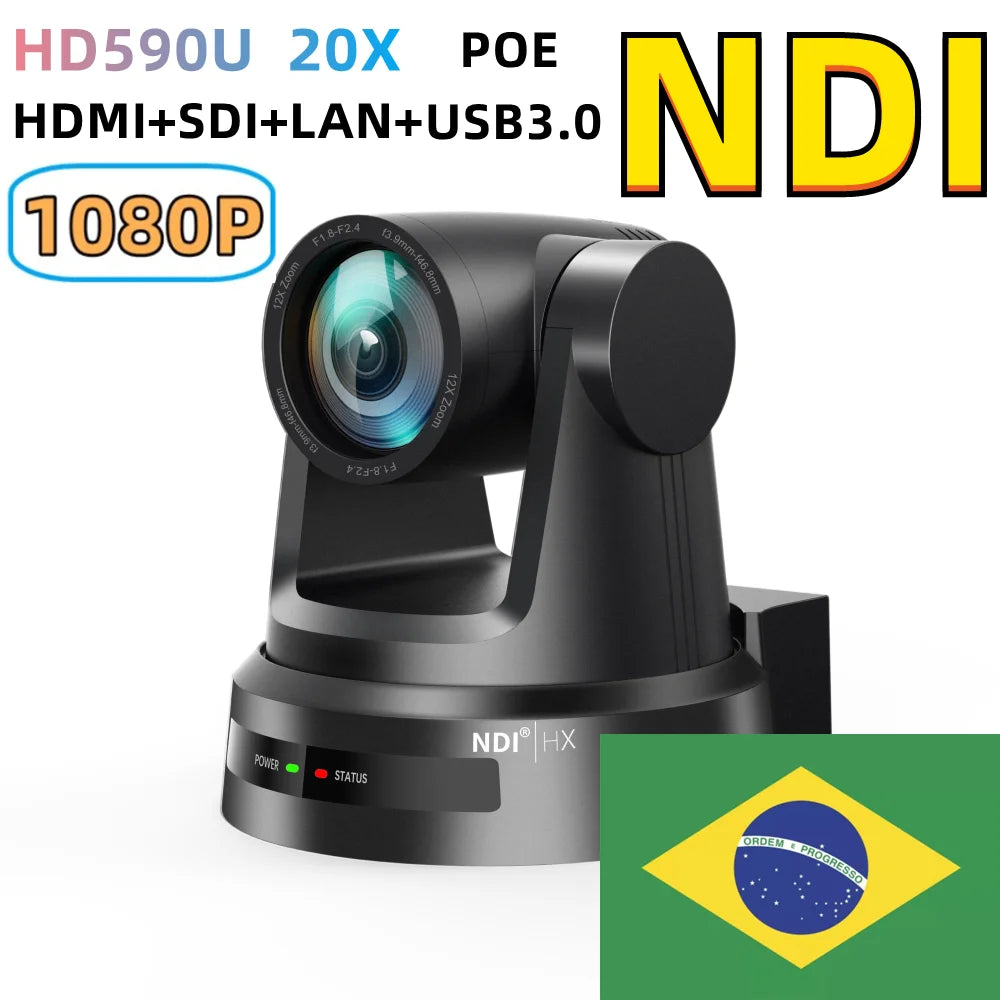

🍒Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI protocols; support RTMP push mode, easily link streaming media servers (Wowza, FMS); support RTP group Broadcast mode, support network full command VISCA control protocol.

🍒Multiple control interfaces: RS422 is compatible with RS485, RS232-IN, RS232-OUT; RS232 supports cascade connection, which is convenient for engineering installation and use.

🍒Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocol, support automatic identification protocol.

🍒Super silent pan/tilt: Adopt high-precision stepper motor and precision motor drive controller to ensure the pan/tilt runs smoothly and without noise.

🍒Multiple presets: Supports up to 255 presets (10 for remote control settings).

🍒Multiple remote controls: Users can choose infrared remote control or wireless remote control according to the environmental conditions used. 2.4G wireless remote control is not affected by angle, distance and infrared interference. Support remote control signal transparent transmission function, which is convenient for back-end devices to use.

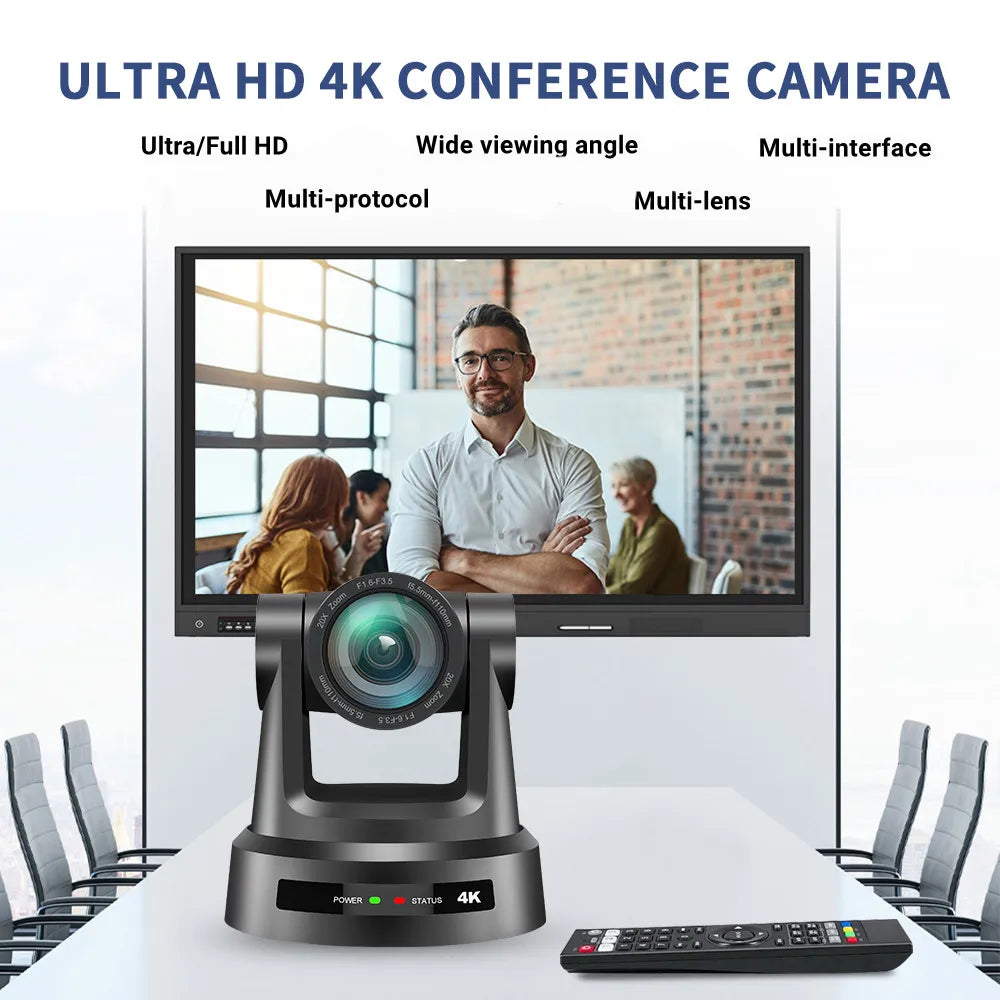

🍒Multiple applications: conferences, education, medical care, government affairs, cloud video, collaborative office, multimedia integration, emergency command, broadcasting, judicial, public security, military and other system applications.

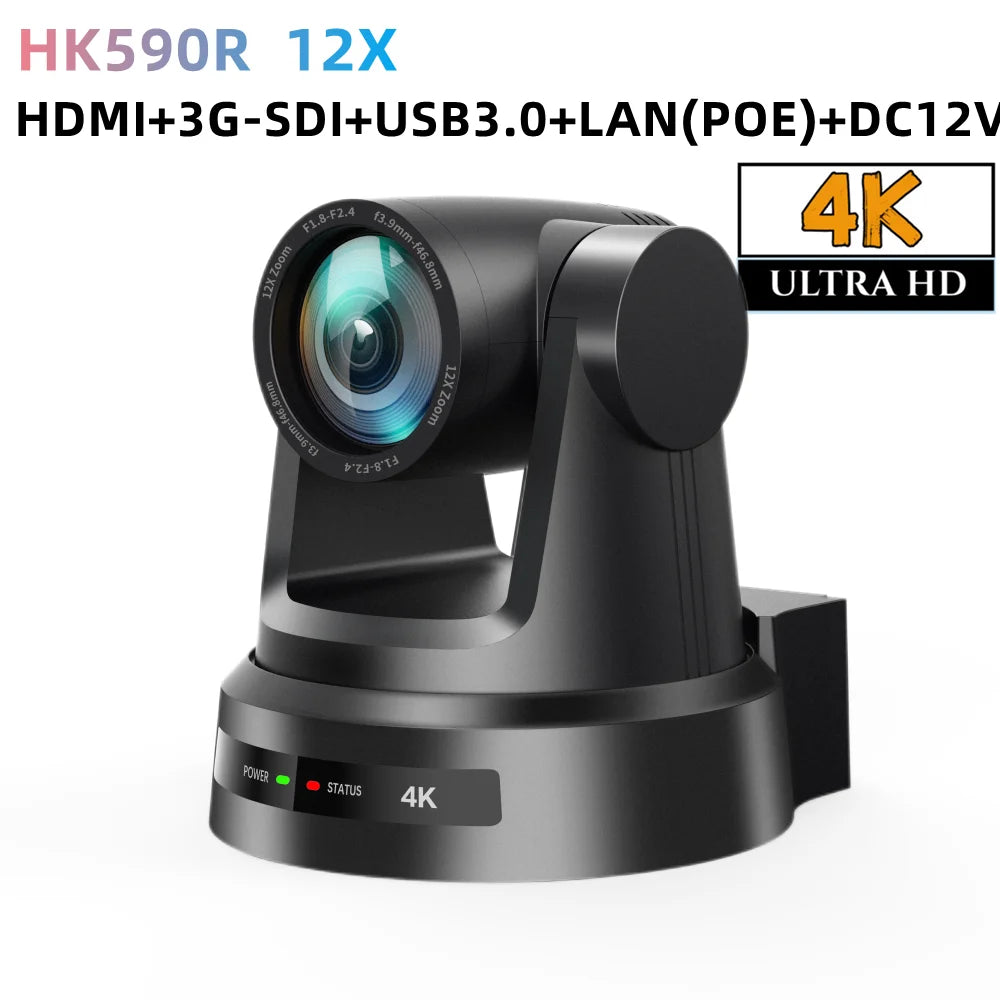

4K Product Features:

🍒First-class image quality: Using 8.51 million-pixel high-quality CMOS image sensor, the highest resolution is 4K (3840×2160), and the output frame rate is up to 60 frames per second; it presents clear and realistic ultra-high-definition video, vividly showing the expressions and movements of the characters , which provides image quality with superb clarity and resolution.
🍒Optical zoom lens: 12x 71° optical zoom lens and 20x 60° optical zoom lens are optional.
🍒Three-in-one image auto-focusing technology: pay attention to the intelligent processing of images, provide automatic white balance (AWB), automatic exposure (AE), automatic focus (AF) functions, fully automatically adapt to the environment, achieve the best image effect, and achieve a perfect trinity The image is automatically adjusted.
🍒Low noise and high signal-to-noise ratio: Low-noise CMOS effectively guarantees the ultra-high signal-to-noise ratio of camera video. Adopt advanced 2D and 3D noise reduction technology to further reduce noise while ensuring image clarity.

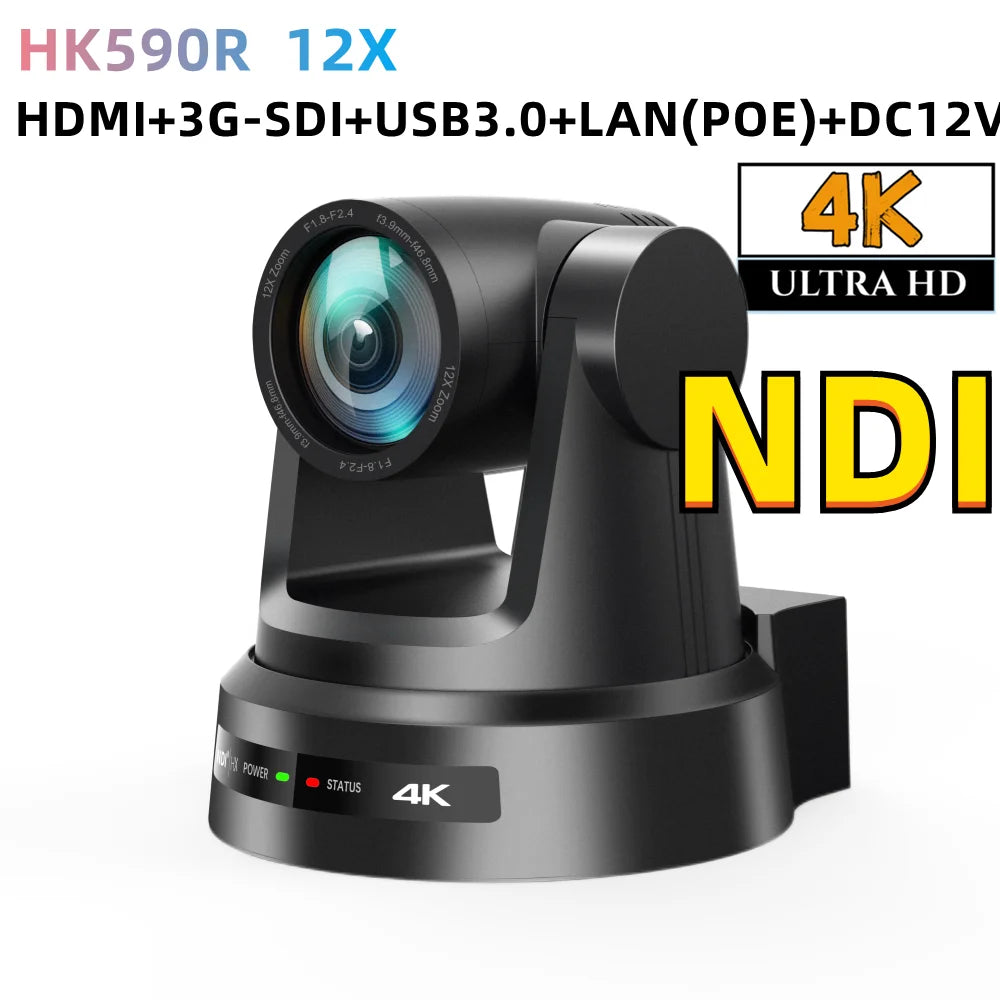

🍒Rich and complete lossless high-definition output interface: HDMI, 3G-SDI, USB3.0, LAN support audio and video output.
🍒Multiple USB compression encoding formats: support YUY2, MJPEG, H.264, NV12 video encoding formats.
🍒Multiple audio compression standards: support AAC, MP3, G.711A audio compression, support 8000, 16000, 32000, 44100, 48000 sampling frequencies.
🍒Built-in gravity sensor: The built-in gravity sensor supports the automatic turning function of the gimbal, which is convenient for engineering installation.
🍒Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols; support RTMP push mode, easy to link streaming media servers (Wowza, FMS); support RTP multicast mode, support network full command VISCA control protocol.
🍒Control interface: RS422 (compatible with RS485) output, RS232 input\output; RS232 supports cascade connection, which is convenient for engineering installation and use.
🍒Multiple control protocols: support VISCA, PELCO-D, PELCO-P protocol, support automatic identification protocol.
🍒Silent PTZ: Adopt high-precision stepper motor and precision motor drive controller to ensure stable operation of PTZ with low noise.
🍒Multiple Presets: Supports up to 255 presets (10 for remote control settings).
🍒A variety of remote controls: Users can choose infrared remote control or wireless remote control according to the environmental conditions used. 2.4G wireless remote control is not affected by angle, distance and infrared interference. Support remote control signal transparent transmission function, which is convenient for back-end devices to use.
🍒There are many application places: conference, education, medical care, government affairs, cloud video, collaborative office, multimedia integration, emergency command, broadcasting, justice, public security, military and other system applications.

1080P/4K optional

1/2.7-inch 2.07 million pixel high-quality CMOS image sensor

12X / 20X

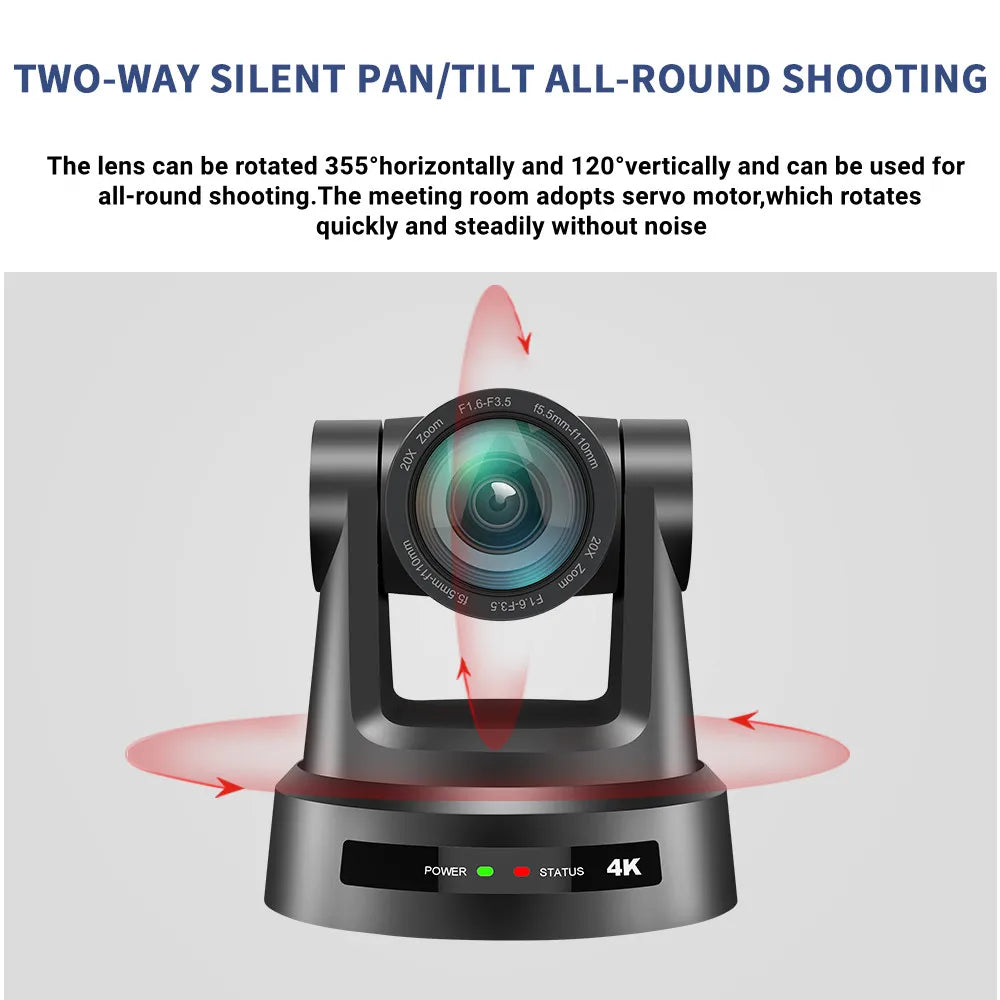

Autofus technology255 presetsImage FlipFull /Utral HD Intelligent Noise ReductionTwo-way silent PAN/Tilt all-round shootingMutiple installation methods
